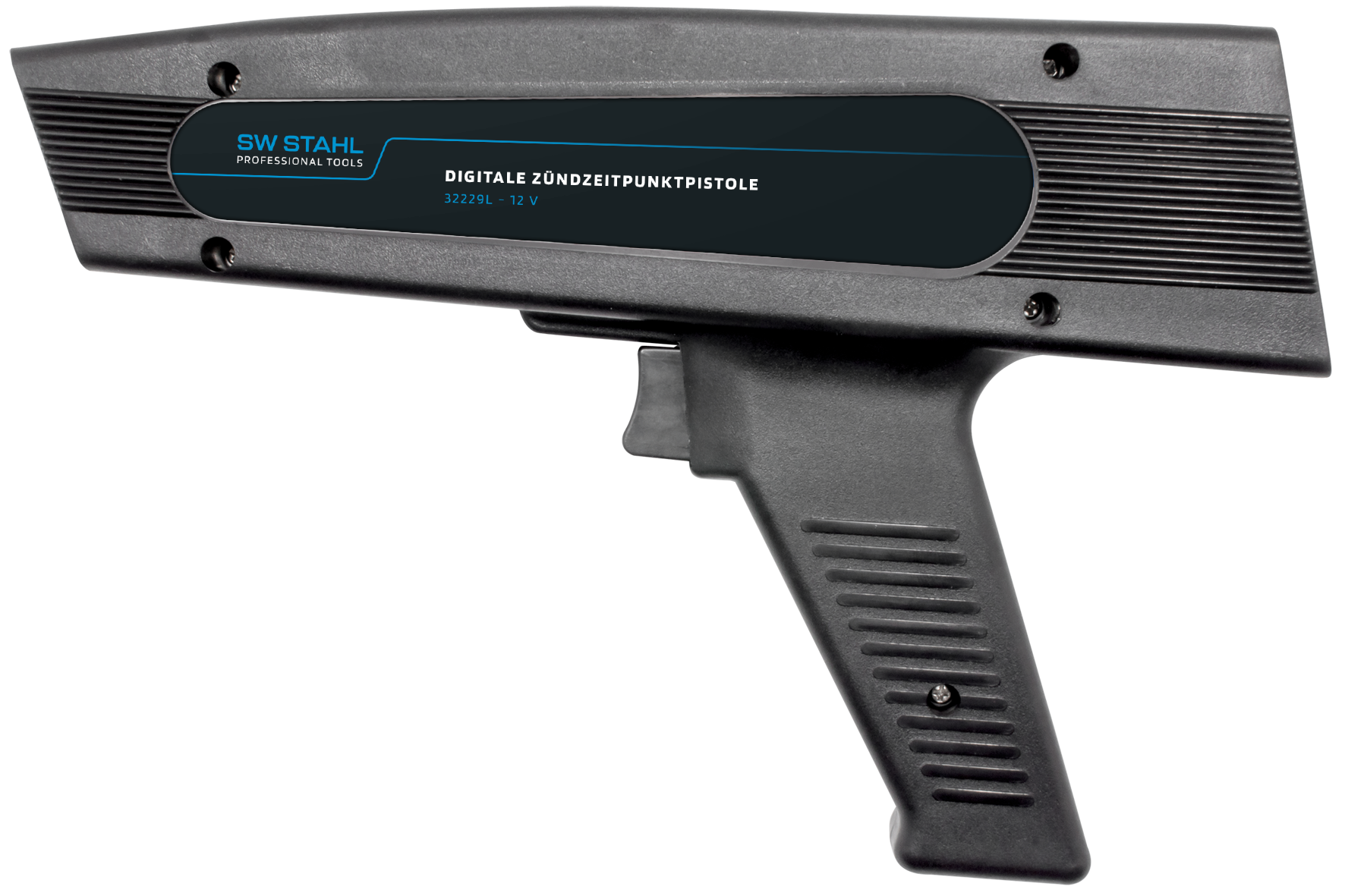

Digital ignition timing gun, 12 V


Item no.: 32229L
EAN: 4033592075992

Information about the product

Description

Stroboscope for 12 Volt systems in 2, 3, 4, 5, 6, 8-cylinder engines. Can be used for 4-stroke distributor ignition systems, 2-stroke and twin-spark ignition systems.

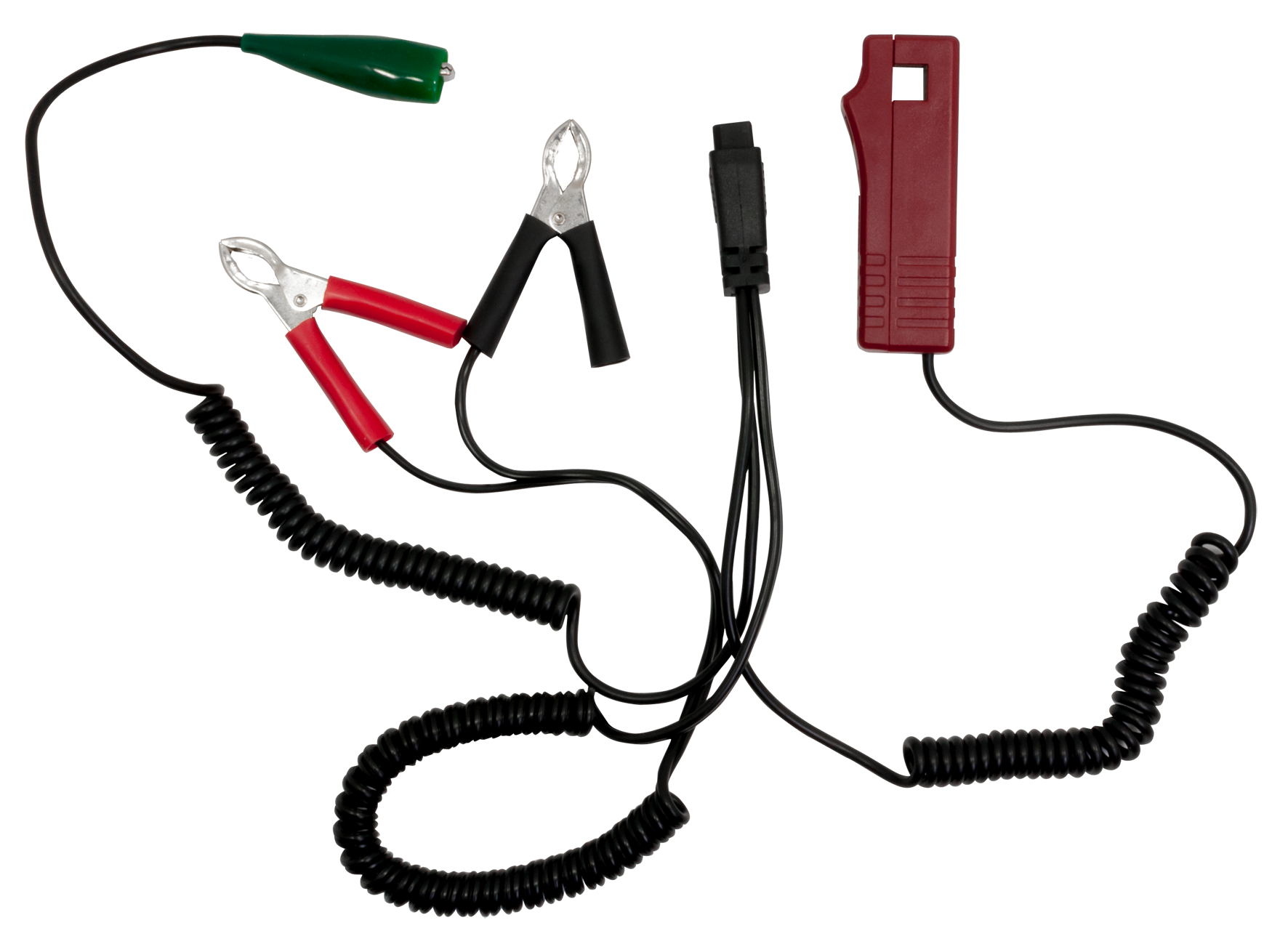

With xenon lamp, red and black cable clamps for the power supply, inductive clamp and green crocodile clip for measuring speed, closing angle and for the voltage test.

  • Perfect setting of ignition from 0 to 60°
  • Closing angle test from 0 - 99.9% with conversion table
  • Engine speed counter from 200 - 9999 rpm
  • Voltage drop test
  • Voltmeter

Technical data

Length [mm] 227
Width [mm] 292
Height [mm] 70
Quality Premium
Weight [kg] 0.83000
Vehicle Main Current for vehicles with 12V main current
