Description

for checking and adjusting the engine timing and the start of fuel delivery for diesel injection pumps.

Suitable for:

• Bosch EP/VE, Rotory, Kikki, Nippon, Lucas, CAV, Roto
• Depth gauge 0 - 5 mm

Technical data

Number of tools	10
Fuel Type	Diesel
Quality	Premium
Weight [kg]	1.02500
Packaging	Plastic Cassette

Documents

Operating manual
July 28, 2020, 9:15 p.m.

Vehicle types

Vehicle type	Year of manufacture (MM/YY)
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 SDI	07/96 bis 07/06	Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI	05/01 bis 07/06	Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI	05/99 bis 07/06	Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI	05/01 bis 07/06	Select vehicle
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 TDI	05/99 bis 07/06	Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 SDI	09/96 bis 07/06	Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI	05/01 bis 07/06	Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI	05/99 bis 07/06	Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI	05/01 bis 07/06	Select vehicle
VW LT 28-46 II Kasten (2DA, 2DD, 2DH) 2.5 TDI	05/99 bis 07/06	Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 SDI	09/96 bis 07/06	Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI	05/01 bis 07/06	Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI	05/99 bis 07/06	Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI	05/01 bis 07/06	Select vehicle
VW LT 28-46 II Pritsche/Fahrgestell (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 TDI	05/99 bis 07/06	Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	05/98 bis 04/03	Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	09/95 bis 04/03	Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI Syncro	01/96 bis 04/03	Select vehicle
VW TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) 2.5 TDI	05/98 bis 04/03	Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI	12/98 bis 04/03	Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI	09/95 bis 04/03	Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI Syncro	09/95 bis 04/03	Select vehicle
VW TRANSPORTER T4 Kasten (70A, 70H, 7DA, 7DH) 2.5 TDI	09/00 bis 04/03	Select vehicle
VW TRANSPORTER T4 Pritsche/Fahrgestell (70E, 70L, 70M, 7DE, 7DL 2.5 TDI	05/98 bis 04/03	Select vehicle
VW TRANSPORTER T4 Pritsche/Fahrgestell (70E, 70L, 70M, 7DE, 7DL 2.5 TDI	09/95 bis 04/03	Select vehicle
VW TRANSPORTER T4 Pritsche/Fahrgestell (70E, 70L, 70M, 7DE, 7DL 2.5 TDI Syncro	05/98 bis 04/03	Select vehicle
VW CALIFORNIA T4 Camper (7DJ, 7DK, 70J) 2.5 TDI	05/98 bis 04/03	Select vehicle
VW CALIFORNIA T4 Camper (7DJ, 7DK, 70J) 2.5 TDI	04/01 bis 04/03	Select vehicle
VW CALIFORNIA T4 Camper (7DJ, 7DK, 70J) 2.5 TDI	07/99 bis 04/03	Select vehicle

Motor code

Motor code	ccm	kW	PS	Year of manufacture (MM/YY)
ACV	2,461	75	102
AGX	2,461	55	75	ab 07/96
AHY	2,461	111	151
AJT	2,461	65	88
ANJ	2,461	80	109
APA	2,461	66	90
AUF	2,461	75	102
AVR	2,461	80	109
AXG	2,461	111	151
AXL	2,461	75	102
AYC	2,461	75	102
AYY	2,461	65	88
BBE	2,461	61	83
BBF	2,461	70	95

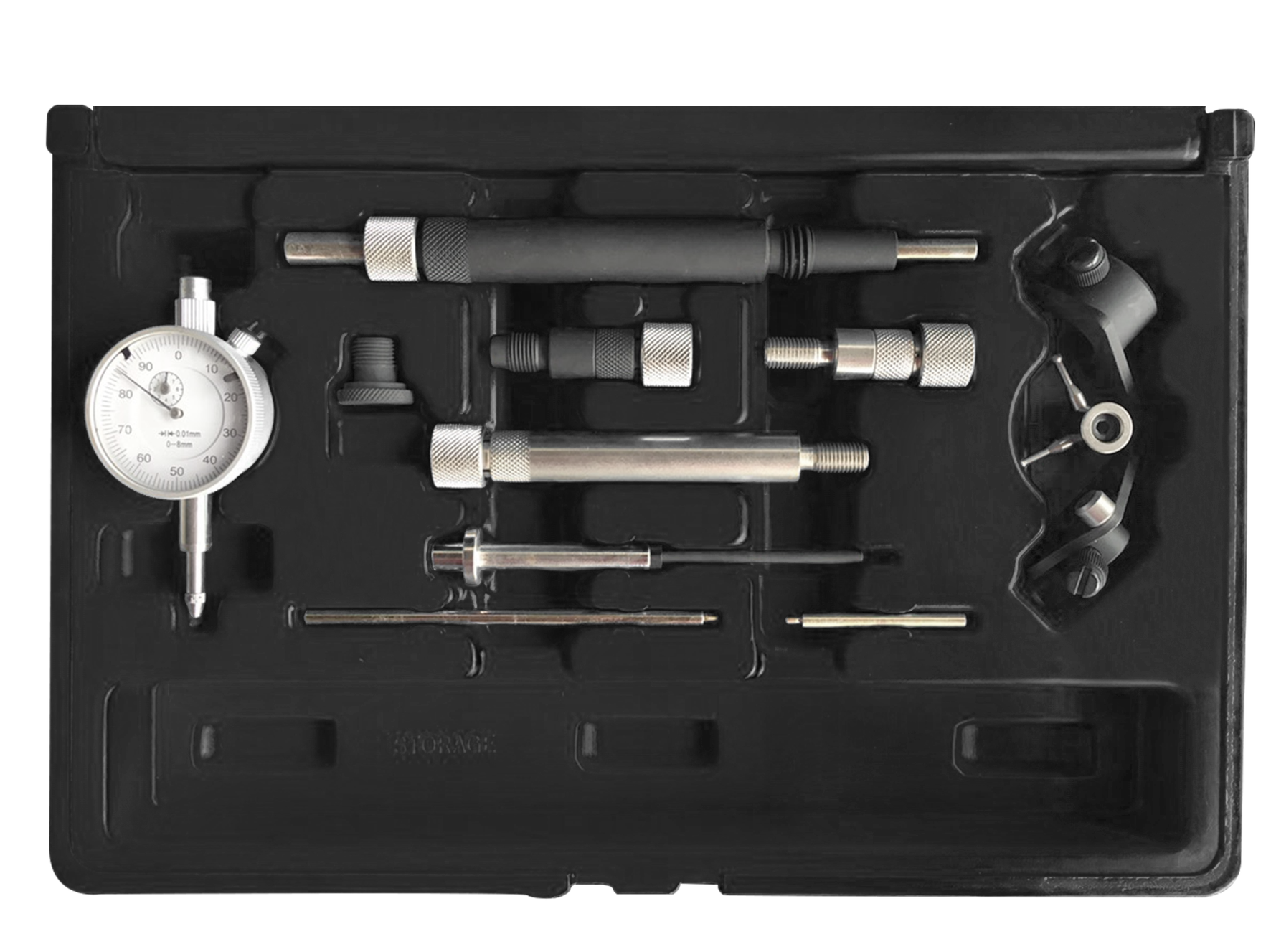

Scope of delivery

	Item no.	variant	Name	Quantity
	26067L	-	Precision gauge	1
	26063L	-	Gauge holder for 25060L	1
	26064L	-	Sensor for gauge 25060L	1

Accessories

	Item no.	variant	Name
	26383L-10	-	Locking pin injection pump
