Groove nut key, 3/4"


Item no.: 10332L
EAN: 4033592051033


Information about the product

Description

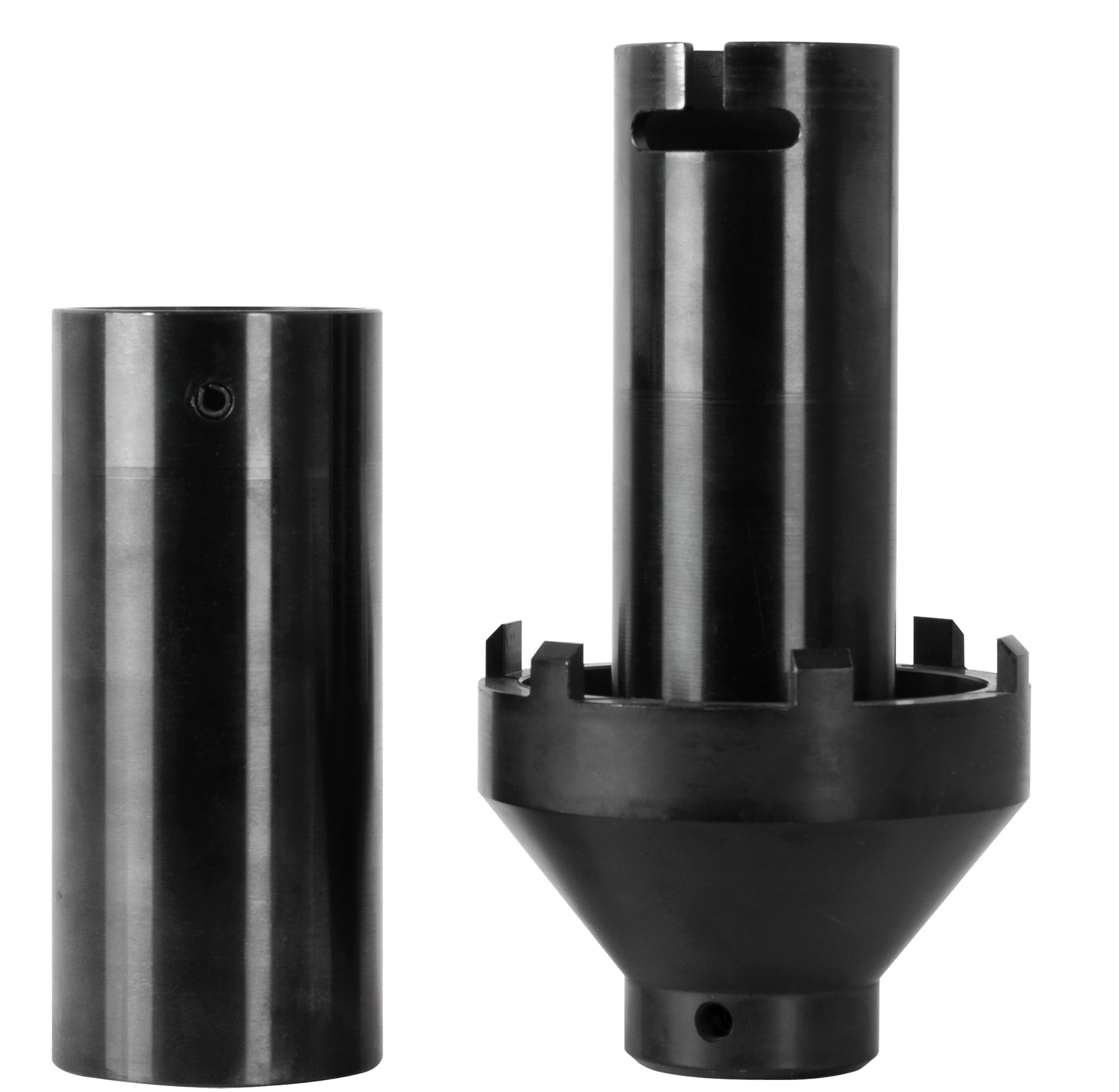

Groove nut key with fixed guide tube Ø 49.0 mm.
The extremely sturdy version has been designed for high tightening and loosening torques. The guide tube is firmly inserted and inc. sleeve guide tube to Ø 57.0 mm extendable as bayonet lock and with clamping pin.

  • No. of pins: 6
  • Width of pins: 10 mm
  • Inner Ø pin: 87 mm
  • Inner Ø key: 80 mm
  • Outer Ø key: 95 mm
  • Height: 185 mm
  • Drive 20 mm (3/4") inner square

Application e.g.: Mercedes-Benz Atego rear axle pinion drive) HL2, Vitaro 814, MAN lightweight class.

Technical data

Antriebs-Vierkant [mm] 20 (3/4")
Maschinenbetätigung (Kraft) Ja
Quality Premium
