Description

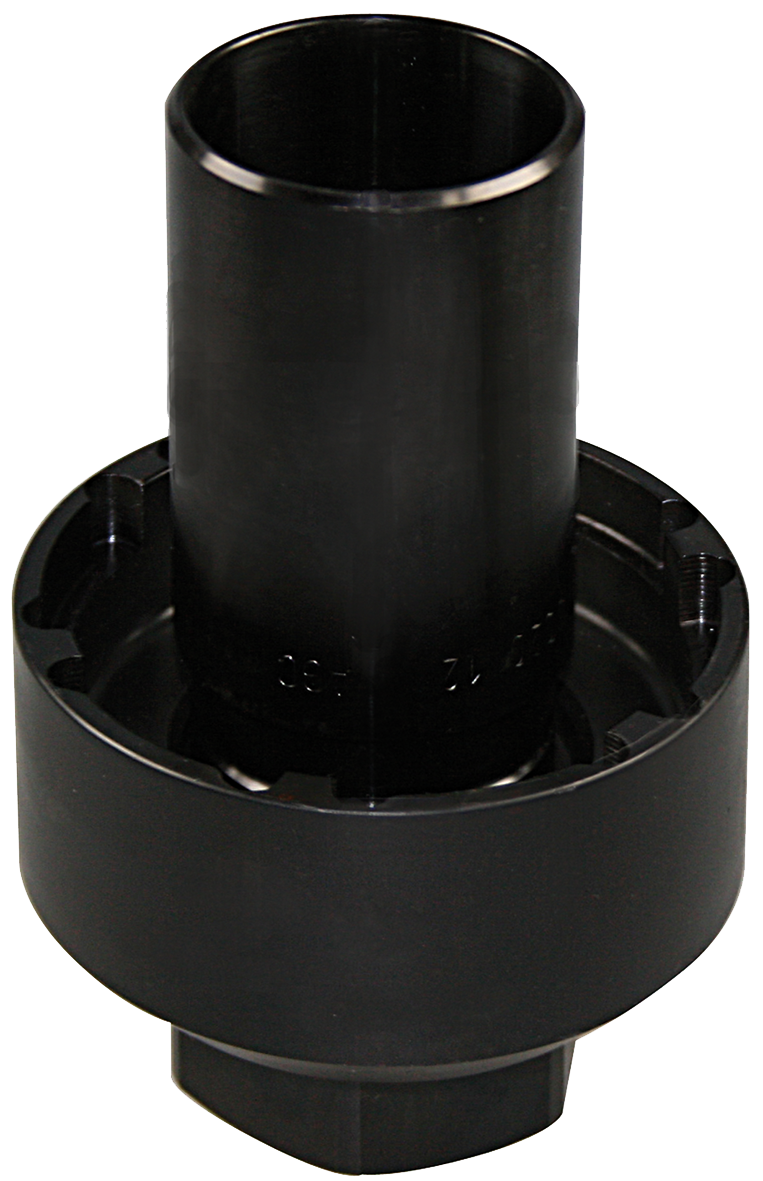

for MAN TGA inc. guide tube Ø 66.5 mm.
The extremely sturdy version was milled and turned out of solid material. Designed for high tightening and loosening torques, guide tube replaceable.
- no. of pins: 6 (inside)
- pin width: 11.5 mm
- inner Ø pin: 117.0 mm
- inner Ø key: 133.0 mm
- outer Ø key: 148.00 mm
- height with guide tube: 158.0 mm
- Hhight without guide tube: 110.0 mm
- drive 20 mm (3/4") inner square + size 60 outer hexagon
Application e.g. MAN-TGA rear axle.
Technical data
| Antriebs-Vierkant [mm] |
20 (3/4")
|
|
| Maschinenbetätigung (Kraft) |
Ja
|
|
| Quality |
Premium
|
|
Scope of delivery
|
Item no. |
variant |
Name |
Quantity |
|
10316L
|
- |
Guide tube, 66,5 mm
|
1
|
